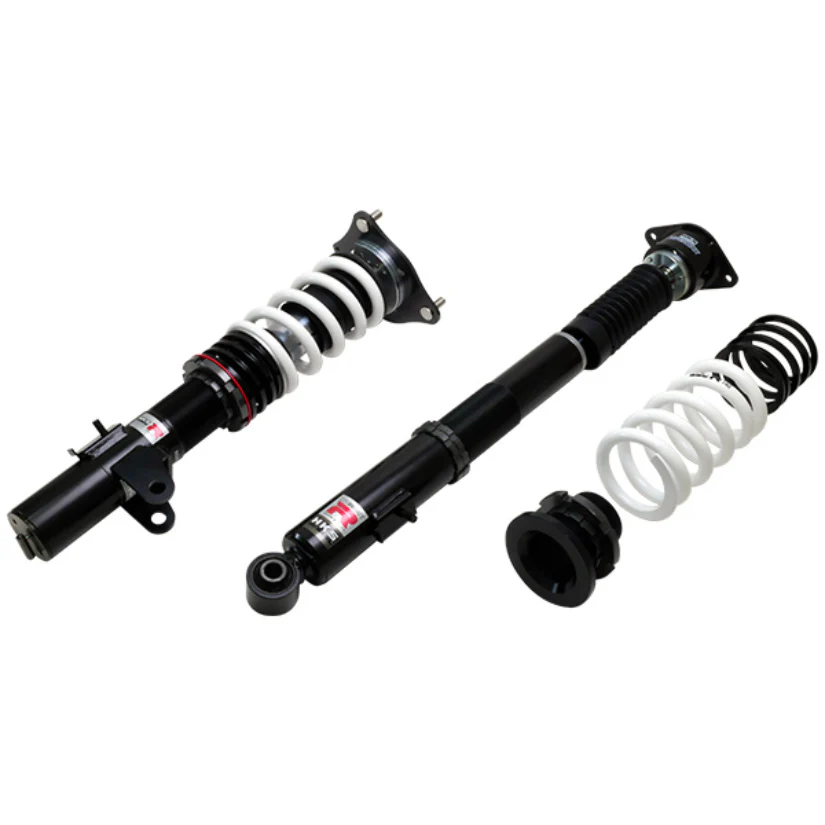

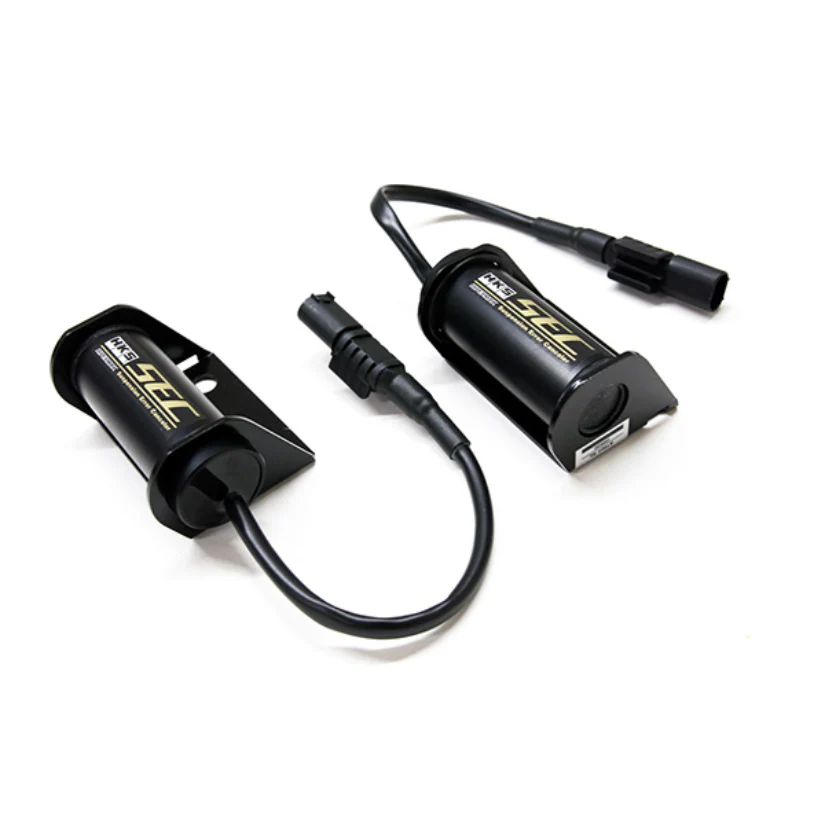

HKS Hipermax R Coilover Kit Honda Civic Type R FL5 With Canceller 22-25
HKS Hipermax R Suspension Honda Civic Type R FL5 K20C
Year Model: 22/09 –
Full Kit Setting Spring: Spring rate N/mm (kgf/mm) – F=137(14.0)/R=137(14.0)
FREE LENGTH F/R MM: 150/150
DAMPING FORCE PISTON SPEED 0.1M/SEC: F= 1172/530 ; R=294/280
Factory Dial Position F/R: F=15/R=15
Damper remaining stroke (extension side/contraction side) mm F;R: F= 58/41 ; R=88/61
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT – MAXIMUM LOWER LIMIT): FRONT =306(306 – 306); REAR = 405(429-382)
More Images
HKS Hipermax R Coilover Kit Honda Civic Type R FL5 With Canceller 22-25
HKS Hipermax R Suspension Honda Civic Type R FL5 K20C
Year Model: 22/09 –
Full Kit Setting Spring: Spring rate N/mm (kgf/mm) – F=137(14.0)/R=137(14.0)
FREE LENGTH F/R MM: 150/150
DAMPING FORCE PISTON SPEED 0.1M/SEC: F= 1172/530 ; R=294/280
Factory Dial Position F/R: F=15/R=15
Damper remaining stroke (extension side/contraction side) mm F;R: F= 58/41 ; R=88/61
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT – MAXIMUM LOWER LIMIT): FRONT =306(306 – 306); REAR = 405(429-382)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HKS Hipermax R Suspension Honda Civic Type R FL5 K20C
Year Model: 22/09 –
Full Kit Setting Spring: Spring rate N/mm (kgf/mm) – F=137(14.0)/R=137(14.0)
FREE LENGTH F/R MM: 150/150
DAMPING FORCE PISTON SPEED 0.1M/SEC: F= 1172/530 ; R=294/280
Factory Dial Position F/R: F=15/R=15
Damper remaining stroke (extension side/contraction side) mm F;R: F= 58/41 ; R=88/61
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT – MAXIMUM LOWER LIMIT): FRONT =306(306 – 306); REAR = 405(429-382)
