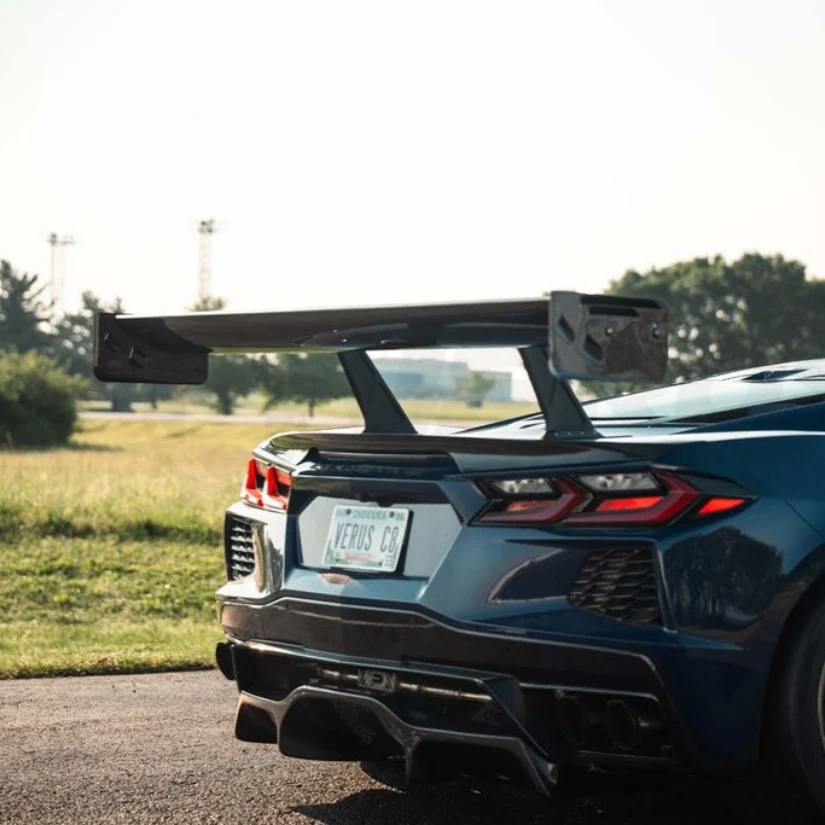

Verus V1X Swan Neck Rear Wing Kit Corvette Stingray C8

A bolt-on swan neck rear wing for the C8 Corvette Stingray, developed using CFD, wind tunnel testing, and in-house scan data for a near-OEM fit to the factory engine cover. Airfoil optimised using the ANSYS Adjoint Solver. The swan neck top-mount design exposes more of the wing's underside to the low-pressure zone, increasing downforce efficiency compared to bottom-mount designs. The V1X uses a longer chord and wider profile than the UCW, generating more downforce at a substantially lower angle of attack - 2 degrees versus 12 degrees on the UCW, with less drag. Uprights are positioned in already-disturbed airflow to minimise aerodynamic penalty.

Includes

• Carbon fibre rear wing assembly
• 2 x machined aluminium swan neck rear wing uprights
• 2 x machined aluminium rear engine cover mounts
• 2 x machined aluminium rear engine cover bottom supports
• 2 x vented carbon fibre rear wing endplates
• 1 x gurney flap
• Full hardware kit

Specifications

• Wing: 2x2 twill pre-preg carbon fibre, autoclave cured, automotive high-gloss clear
• Mounting kit: 6061-T6 aluminium, machined in-house on 5-axis CNC
• Hardware: stainless steel throughout
